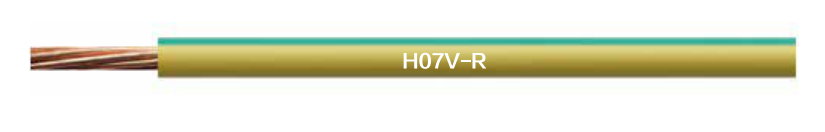

Product Structure
Conductor: Single or stranded bare copper or tinned copper wires complying with IEC 60228 VDE 0295 Class 5 standard.
Insulation: PVC/T11 complying with DIN VDE 0281 Part 1 + HD 211.
Core identification per HD 402 standard.
Application standards: HD 21.3 S3, VDE-0281 Part-3, CE Low Voltage Directive, 73/23/EEC, and 93/68/EEC.
Technical Parameters
Rated Voltage: 300V/500V
Test Voltage: 2500V complying with DIN VDE 0281 Part 2 + HD 21.2
Minimum Bending Radius Fixed Installation: 12.5xD (cable outer diameter)
Mobile Installation: 12.5xD (cable outer diameter)
Temperature Range Fixed Installation: -30 to +80°C, Mobile Installation: -5 to +70°C
Flame Retardant and Self-Extinguishing
Flame Retardancy: Complying with EC60332-1-2 + EN60332-1-2 UL VW-1 + CSA FT1, IEC 60332.1
Insulation Resistance: 10 MQ x km
Characteristics and Compliance
Characteristics: Solid core single-core wire, easy stripping, cutting, and installation. Complies with EU harmonized standards.
Compliance Certification: RoHS/CE
Typical Applications
Used for internal peripheral hard wiring between distribution panels and power distribution boards of electrical and instrumentation equipment. Also suitable for interfaces between electronic and electrical devices and switch cabinets, as well as power and lighting systems. Suitable for exposed and embedded conduit fixed installations.
