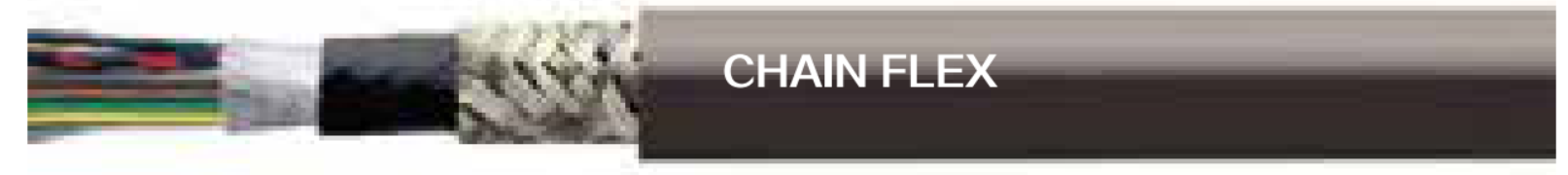

High-Density Double Sheath Shielded Drag Chain Cable

Product Structure
Conductor: Multi-stranded ultra-fine high-precision oxygen-free copper wire, compliant with CDEO295 CLASS 6 standard
Insulation: Special mixed PVC
Color Code: ≤0.5mm: Color representation - brown, black, blue, purple, pink, orange ≥0.5mm: Black digits with white numbers, 3 cores and above have blue-green grounding wire (yellow-green optional)
Core Structure: Anti-torsion stranded with layers, or grouped with interstitial filling
Shielding: Tin-plated copper braid shield, with a density of 80% or higher
Outer Sheath: Special modified PVC sheath
Sheath Material:
Inner Sheath: Modified low viscosity extruded PVC, oil-resistant
Sheath Color: Outer Sheath: Black (RAL9005)/Grey (RAL7001)/Orange (RAL2003)

Technical Parameters
Rated Voltage: <0.5mm²: 300/300V ≥0.5mm²: 300/500V
Test Voltage: 2000V
Minimum Bending Radius: 6XD
Fixed Installation: When travel distance <10 meters, bending radius is 10XD
Mobile Installation: When travel distance ≥10 meters, bending radius is 12XD
Operating Temperature: Fixed Installation: -30℃ to +70℃ Mobile Installation: -20°C to +70℃
Radiation Resistance: 8x10⁷cJ/kg
Flame Retardancy: Compliant with IEC60332-1-2+EN60332-1-2

Characteristics and Compliance
Mobile Characteristics: ◆Installation Travel: 50m, acceleration 20m/s², moving speed 5m/S ◆Bending lifespan: 30 cycles/minute, >3 million cycles
Characteristics: ◆Resistance to shallow water, oil, UV, and weather ◆Cold resistance, wear resistance, capable of withstanding certain mechanical external forces
Compliance:

Typical Applications
Suitable for continuous reciprocating motion installations, especially in industrial environments with frequent bending situations. Used in modern machinery standard components' drag chains, logistics systems, control systems, mechanical automation systems, etc. Also applied in CNC machines, electronic equipment, metal stamping, woodworking machinery, glass and door/window machinery, injection molding machines, mechanical (robotic) hands, construction machinery, heavy machinery plants, automotive manufacturing, lifting and transport equipment, automated warehouses, docks, fire trucks, and indoor/outdoor environments.
