Conductor: Bare copper multi-strand wire, compliant with IEC60228, EN60228, VDE0295, Grade 6
Insulation: TPE510
Color Code: Black cores with consecutive numbering, compliant with EN50334, and a green/yellow ground wire
Core Structure: Layered
Armor: Non-woven tape
Sheath Material: Surface roughened PUR, TMPU compliant with DIN VDE0282+HD22.1010+HD22.10
Sheath Color: Orange (RAL2003)
Technical Parameters
Rated Voltage: Uo/U 0.6/1kV
Test Voltage: 4000V
Minimum Bending Radius
Fixed Installation: 4xD
Mobile Installation: 6xD
Continuous Movement: 10xD
Operating Temperature
Fixed Installation: -50°C to +70°C
Mobile Installation: -40°C to +70°C
Radiation Resistance: 5x107cJ/kg
Oil Resistance: Excellent PUR, TMPU compliant with DIN VDE0282+HD22.1
Chemical Resistance: Good resistance to acids, alkalis, solvents, hydraulic oils, etc.
Characteristics and Compliance
Characteristics: ◆Ultra-high flexibility ◆Oil resistance ◆Ultra-long service life ◆Non-sticky installation ◆Rubber-free (no moisture or ash during installation) ◆Low-temperature flexibility
Compliance:
Typical Applications

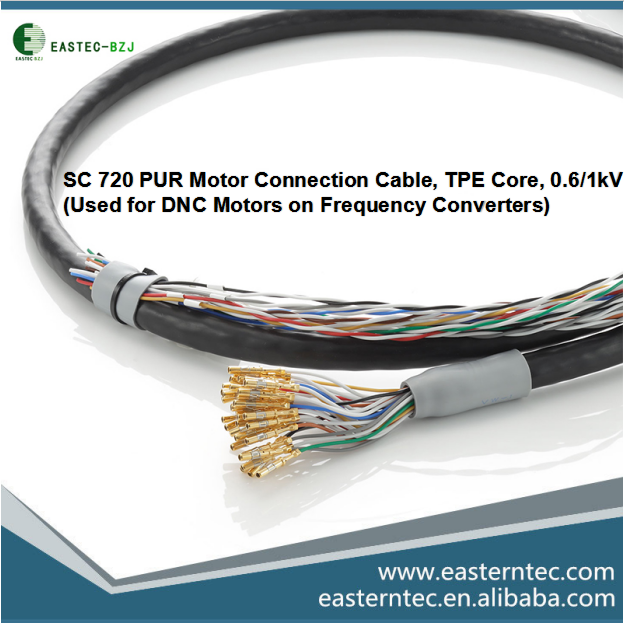

Suitable for fixed installations and flexible use, for machines and industrial factory constructions with general mechanical requirements in dry, humid, and highly humid environments. Also suitable for automation technology, control and production engineering, robot and industrial factory constructions, motor constructions, drive systems, and DNC motors on frequency converters.
