Conductor: 0.14mm²-0.34mm²: Bare copper multi-strand wire, refined wire ≥0.50mm²: Bare copper multi-strand wire in accordance with IEC60228+EN60228, VDE0295, class 6
Insulation: 0.14mm²-0.34mm²: TPE531 >0.50mm²: TPE510
Color Code: 0.14mm²-0.34mm²: Follows color code >0.50mm²: Black cores with continuous numbering in accordance with EN50334, starting with three cores, one green-yellow grounding core
Core Structure: Each layer is specially treated and wrapped with non-woven tape
Outer Jacket Material: PUR, TMPU in accordance with DIN VDE0282+HD22.1
Outer Jacket Color: Black (RAL9005)
Technical Parameters
Voltage: 0.14mm²-0.34mm²: UL/CSA 300V ≥0.50mm²: UL/CSA 600V
Maximum Operating Voltage: 0.14mm²-0.34mm²: Maximum 350V 0.50mm²: DIN VDE 300/500V
Test Voltage: 0.14mm²-0.34mm²: 1500V in accordance with DIN VDE0472 ≥0.50mm²: 3000V in accordance with DIN VDE0281+HD21.2
Twisting Angle: Up to ±270°C/0.5m
Minimum Bending Radius: Highly flexible 12xD/20XD from 34 cores
Operating Temperature UL CSA DIN VDE
Fixed Installation: Up to +80°C Up to +80°C -50/+90°C
Mobile Installation: Up to +80°C Up to +80°C -40/+90°C
Radiation Resistance: 5x107cJ/kg
Flame Resistance: UL VW-1+CSA FT1+FT2 EC60332-12+EN60332-1-2
Oil Resistance: Excellent PUR TMPU+DIN VDE0282+HD22.1
Chemical Resistance: Excellent resistance to acids, alkalis, solvents, various hydraulic oils, etc.
Characteristics and Compliance
Characteristics: ◆ Long-lasting durability ◆ Oil resistance ◆ Halogen-free ◆ Low-temperature and humidity resistance ◆ Twisting angles above 0.5mm can reach up to ±450°C
Compliance Certification:
Typical Applications

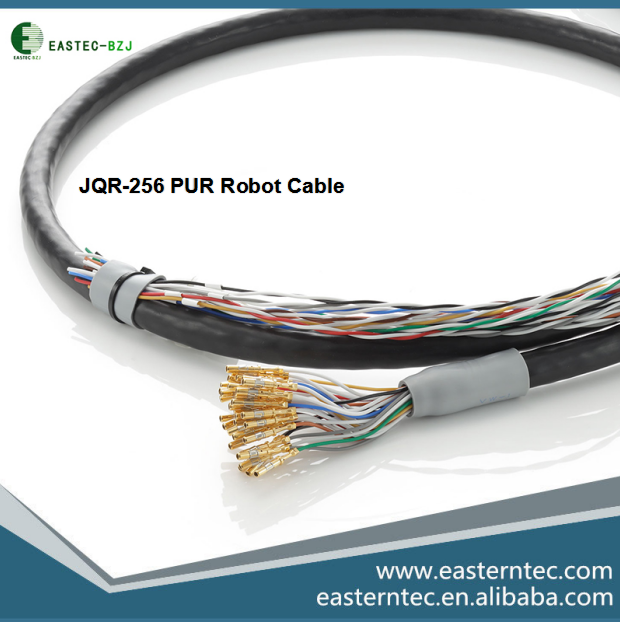

Used as connecting cables in various industrial fields, such as industrial robots, factory and machine tool manufacturing. These cables are suitable for medium mechanical stress, especially for applications with seat and high flexibility against twisting stress. They can be bent and moved freely without tensile strain. These cables can be used in places where drag chains cannot be used due to structural limitations and are also applicable in low-temperature, dry, extremely humid rooms, and unprotected areas.
