Self-pierce riveting (Pro-riveting)

Self-pierce riveting,Chinese Pro-riveting

Product Detail
No pre-drilling, no emissions and no noise,
Just contact us! Tel:+86-0512-67664080
PRODUCT INTRODUCTION
Self-pierce riveting is a process used in joining technology that creates mechanically strong joints of similar or different types of material.Suitable for busbar groove riveting, lock riveting, auto sheet metal riveting, sheet metal riveting, case cabinet riveting and other high-end industries.
Self-pierce rivets
Product Features
① Joining different types of material
② No pre-drilling,Easy to use
③ High quasi-static and dynamic strength
④ For various materials
⑤ For various thicknesses and strengths of material

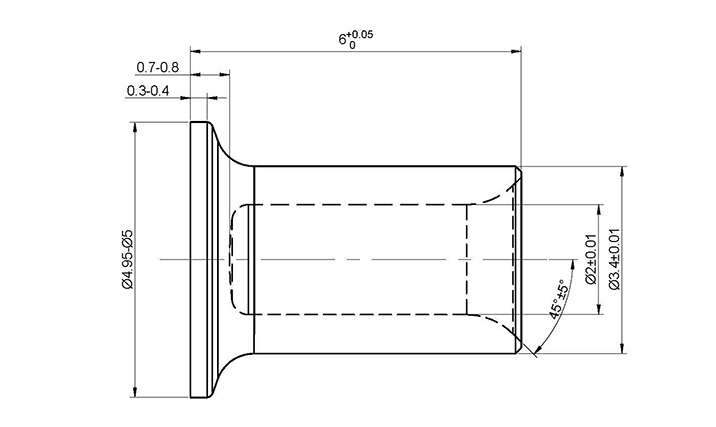

Dimensions
Dimensions
SPECIFICATIONS
Cap diameter(mm) Material Surface Plating Degree of hardness Length(mm) Pack
5.3 S45C/SCM435 Dacromet/Magni/The mechanical zinc tin/Electric galvanized/Zinc nickel alloy H42/H47/H30/H38/H44/H52 5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12 5000/4500/6550
4.3 S45C/SCM435 Dacromet/Magni/The mechanical zinc tin/Electric galvanized/Zinc nickel alloy H42/H47/H30/H38/H44/H52 3.5/4/4.5/5/5.5/6/6.5/7 5000/4500/6550
We offer two kinds of packing: bag and tape
The optimal performance is dependent on material thickness and hardness. Testing is required to determine proper rivet selection and die configuration as well as tooling for specific applications.

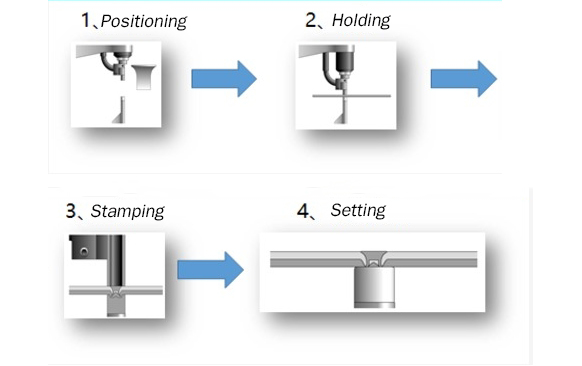

HOW TO USE

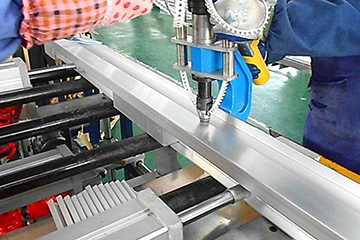

APPLICATION Explanatory Chart Specify
Joining different types of material Eastec Self-pierce rivets This self-piercing rivet technology offers fastening without piercing through the back substrate ensuring a fully sealed joint.
Physical display
Eastec Self-pierce rivets
Related field
auto industry   shipbuilding industry   Shipping containers
auto industry   shipbuilding industry   Shipping containers

Eastec founded in 2008 on January 3, have investment in the Bozuan (Suzhou) technology co., LTD., Beizhun (Shanghai) machinery technology co., LTD., Beizhun (Suzhou) machinery technology co., LTD. And, around the branch, focus on precision metal parts, precision machinery parts and components, automation components and components research and development, production, sales and services.

Our Principle

Customer satisfaction as the purpose,Technological innovation as the driving force

Quality progress for development,Cohesion staff to achieve supply chain value enhancement
