H07V-U

Product Structure:
Conductor: Single or stranded bare copper or tinned copper wires in accordance with IEC60228 VDE0295 Class 5 standard.
Insulation: PVC/T11 in compliance with DIN VDE 0281 Part 1 + HD211.
Color Code: Core colors for easy identification, compliant with HD402 standard.

Standards and Approvals:
HD 21.3 S3, VDE-0281 Part-3, CE Low Voltage Directive, 73/23/EEC, and 93/68/EEC.

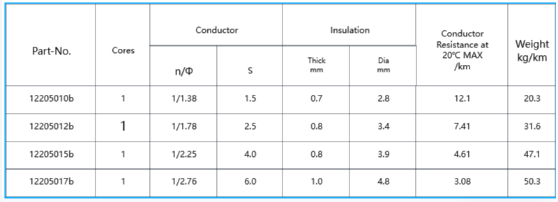

Technical Specifications:
Rated Voltage: 300V/500V.
Test Voltage: 4000V in accordance with DIN VDE 0281 Part 2 + HD212.
Minimum Bending Radius:

Fixed installation: 12.5xD (cable outer diameter).
Mobile installation: 12.5xD (cable outer diameter).
Temperature Range:
Fixed installation: -30°C to +80°C.
Mobile installation: -5°C to +70°C.
Flame Retardancy: Flame retardant and self-extinguishing, compliant with IEC60332-1-2 + EN60332-12 ULVW-1 + CSA FT1.
Insulation Resistance: 10 MQ x kΩ.
Characteristics and Compliance:
Characteristics: Solid-core single-core wires, easy to strip, cut, and install. Compliant with European Union harmonized standards.
Certifications: RoHS, CE.

Typical Applications:
H05V-U wires are used for internal peripheral hardwiring between distribution panels and power distribution boards in electrical and electronic equipment. They are also suitable for interfaces between electronic and electrical devices and switch cabinets. Additionally, they are commonly used in power supply and lighting systems. The cables can be installed in exposed or embedded conduits.
