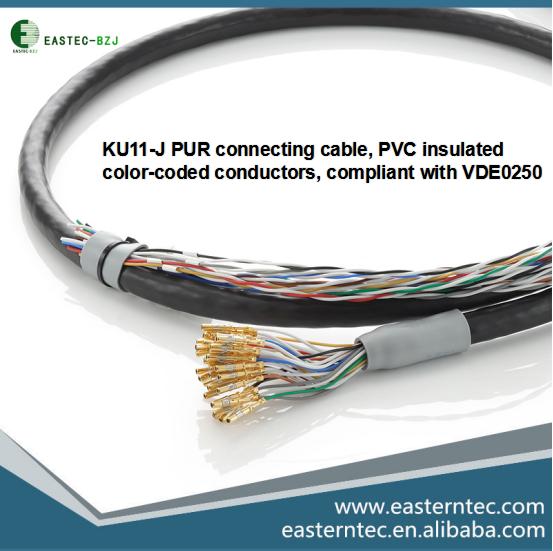

Conductor: Bare copper stranded wire, compliant with IEC 60228, EN 60228, VDE 0295, Class 5.
Insulation: PVC, TI2, compliant with DIN VDE 0281+HD 21.1.
Color Code: Color coding complies with HD 308 (VDE 0293), with a yellow-green grounding wire from three-core cables onwards.
Conductor Structure: Layered.
Inner Sheath: LSHF (Low Smoke Halogen-Free).
Shielding: Tinned copper braided shield.
Sheath Material: PUR (Polyurethane), TMPU, compliant with DIN VDE 0282+HD 22.1.
Sheath Color: Orange (RAL 2003).
Technical Parameters
Rated Voltage: Uo/U 300/500V.
Test Voltage: 3000V, compliant with DIN VDE 0281+HD 21.2.
Minimum Bending Radius:
Fixed installation: 4xD.
Mobile installation: 6xD.
Temperature Range:
Fixed installation: -40°C to +90°C.
Mobile installation: +5°C to +90°C.
Radiation Resistance: 5x107 cJ/kg.
Oil Resistance: Excellent, TMPU compliant with DIN VDE 0282+HD 22.1.
Chemical Resistance: Excellent resistance to acids, alkalis, solvents, and various hydraulic oils.
Characteristics and Compliance
Characteristics: ◆Excellent oil resistance ◆Excellent abrasion resistance ◆Excellent cut resistance ◆Outstanding electromagnetic performance.
Compliance Certification:
Typical Applications
PUR connecting cables are suitable for indoor use in dry, humid, and very humid environments with high mechanical loads, such as electrical equipment and power tools, especially in low-temperature environments.
