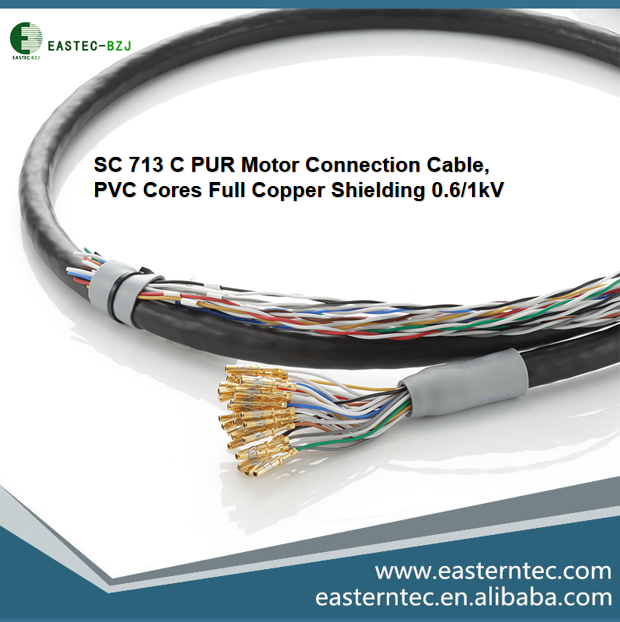

SC 713 C PUR Motor Connection Cable

Product Detail
Product Structure
Conductor: Bare copper multi-stranded wire, compliant with IEC60228, EN60228, VDEO295, Class 6
Insulation: PVC, TI2 compliant with DIN VDE0281+HD21.1
Color Code: Black cores with continuous numbering compliant with EN50334, and one yellow-green grounding wire
Core Structure: Layered
Inner Sheath: PVC, TI2 compliant with DIN VDE0281+HD21.1
Shield: Tinned copper braid
Outer Sheath: Non-woven tape
Sheath Material: Surface rough PUR, TMPU compliant with DIN VDE0282+HD22.10+HD22.10
Sheath Color: Orange (RAL2003)

Technical Parameters
Rated Voltage: Uo/U 0.6/1kV
Test Voltage: 4000V Cores/Shield 2000V
Minimum Bending Radius:
Fixed Installation: 5xD
Mobile Installation: 10XD
Continuous Movement: 12XD
Operating Temperature:
Fixed Installation: -40°C to +70°C
Mobile Installation: +5°C to +70°C
Radiation Resistance: 5x107cJ/kg
Oil Resistance: Excellent PUR, TMPU compliant with DIN VDE0282+HD22.1
Chemical Resistance: Good resistance to acids, alkalis, solvents, hydraulic oils, etc.

Characteristics and Compliance
Characteristics: ◆ Flexibility ◆ Oil resistance ◆ Rough surface sheath ◆ Excellent electromagnetic performance
Compliance:

Typical Applications
Suitable for fixed installations and flexible use, such as in machines and industrial constructions with general mechanical requirements in dry, wet, and highly humid environments, such as automation technology, control and production engineering, robot and industrial plant constructions, motor constructions, drive systems, and power cables between frequency converters and servo motors.
