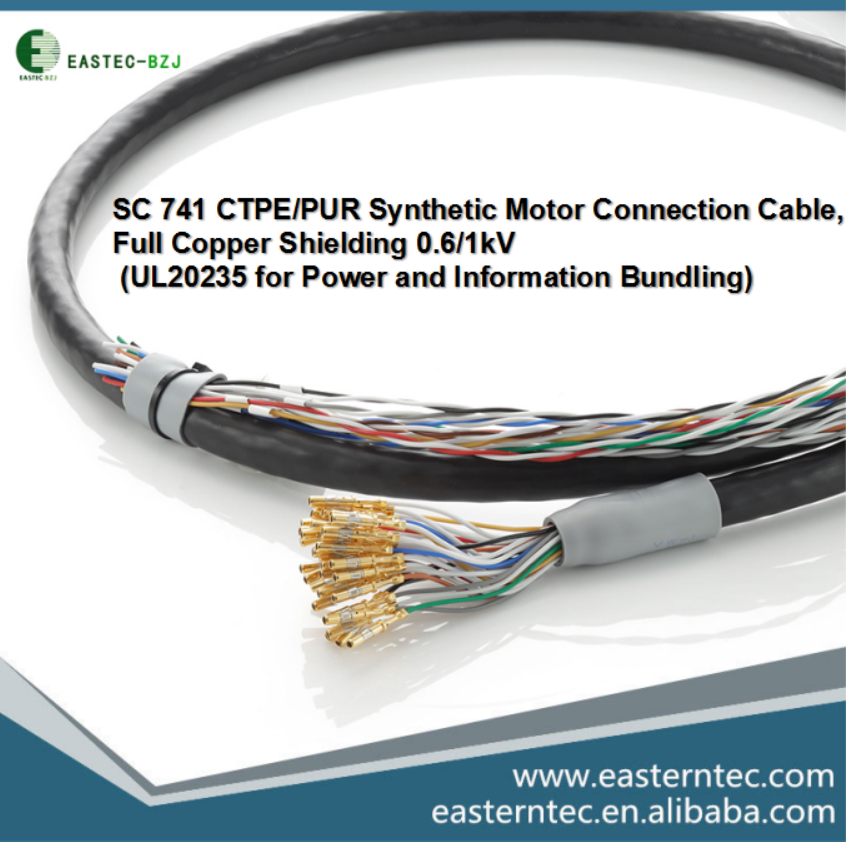

SC 741 CTPE/PUR Synthetic Motor Connection Cable

Product Structure
Conductor: Bare copper multi-stranded wire, compliant with IEC60228, EN60228, VDE0295, Class 6; <0.5mm2 compliant with DIN VDE0812
Insulation: TPE510
Color Code: Black cores with continuous numbering, compliant with EN50334, and one yellow-green grounding wire
Core Structure: Control cores 0.34mm2-2.5mm2 paired and twisted
Shielding: Paired aluminum foil wrapped with tinned copper braid
Jacket: Paired PETP foil wrapped
Core Structure: Paired shielded control and power twisted pairs with layered structure
Jacket: Double-layer non-woven tape
Shielding: Full copper shielding
Outer Sheath: Non-woven tape
Sheath Material: Surface rough PUR, TMPU compliant with DIN VDEO282+HD22.1010+HD22.10
Sheath Color: Orange (RAL2003)

Technical Parameters
Rated Voltage: DIN VDE: Power Uo/U 0.6/1kV
Voltage: UL/CSA: Power 1000V
Maximum Operating Voltage: DIN VDE: Control cores max. 350V
Voltage: UL/CSA: Control cores 300V
Test Voltage U: Power 4000V: Control cores 1500V
Minimum Bending Radius Fixed Installation: 5×D
Mobile Installation: 10×D
Continuous Movement: 12×D
Operating Temperature:
Fixed Installation: -50°C to +90°C (reaching 80°C)
Mobile Installation: -40°C to +90°C (reaching 80°C)
Radiation Resistance: 5x107cJ/kg
Flame Retardancy: Flame-retardant and self-extinguishing compliant with IEC60332-1-2+EN60332-1-2. CSA FT1+FT2
Oil Resistance: Excellent, TMPU compliant with DIN VDE282+HD22.1
Chemical Resistance: Good resistance to acids, alkalis, solvents, hydraulic oils, etc.

Characteristics and Compliance
Characteristics: ◆ High flexibility ◆ Extended service life ◆ Non-adhesive installation ◆ Rubber-free (no moisture or dust generated during laying) ◆ Low-temperature flexibility ◆ Excellent electromagnetic performance ◆ Cable bundling available as required
Compliance:

Typical Applications
Highly flexible drag chain cables are used in servo-driven industrial applications, such as automation technology, machine manufacturing, industrial robotics, power equipment, control and manufacturing engineering, processing systems, automobile manufacturing plants, wood processing centers, compliant with DESNA color coding.
