Key Component in Mech. Transmission

As a key component in mechanical transmission systems, the function and application of splined shafts are crucial in various types of machinery and equipment. This article will provide a comprehensive analysis from the definition, structure, function, and application aspects of splined shafts, helping everyone to better understand this important mechanical transmission component.



I. Definition and Structure of Splined Shafts

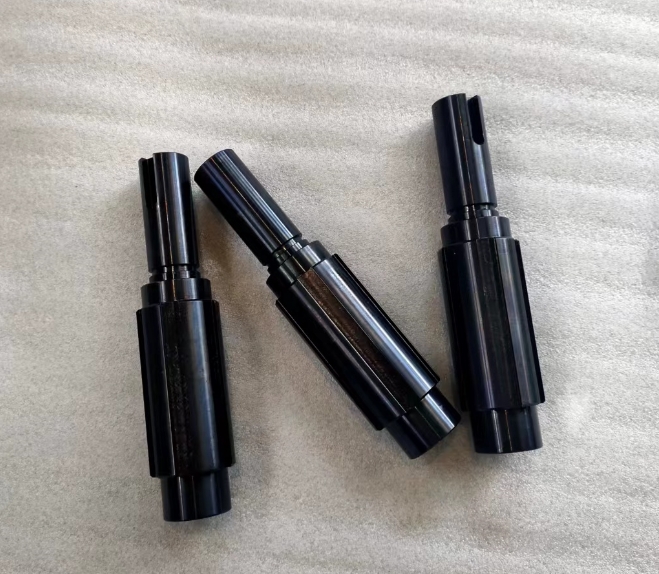

A splined shaft is a type of shaft part characterized by having spline grooves on its surface, designed for use in conjunction with gears, synchronizers, pulleys, and other transmission components. The structure of a splined shaft generally consists of the shaft body, spline grooves, and end face. The shaft body is the main part of the splined shaft, used for transmitting torque and rotation; the spline grooves are key parts on the shaft body, used for engaging with transmission components to achieve force transmission; the end face is used in conjunction with bearings, seals, and other components to ensure the normal operation of the splined shaft.



II. Functions of Splined Shafts

1. Torque Transmission: Splined shafts engage with transmission components through spline grooves to transmit torque. In mechanical transmission systems, they convey the torque generated by motors, reducers, and other driving components to working parts such as gears and pulleys, thereby driving these components to rotate.

2. Enhancing Transmission Efficiency: The design of the spline grooves on splined shafts allows for a tighter fit with transmission components, resulting in higher transmission efficiency. Compared to other types of shaft parts, splined shafts can more effectively reduce energy loss and improve the efficiency of the entire transmission system.

3. Reducing Wear: The spline groove structure of splined shafts enables firmer fixing of transmission components onto the shaft, reducing wear caused by vibration and impact. Additionally, the material and surface treatment processes used for splined shafts also provide good wear resistance, extending the service life of transmission components.

4. Space Saving: The design of the spline grooves on splined shafts results in high transmission efficiency, allowing for significant torque transmission within a smaller space. Therefore, splined shafts can save space in machinery and equipment, reducing their overall size.



III. Applications of Splined Shafts

Splined shafts are widely used in various mechanical transmission systems, such as automobiles, machine tools, transmission machinery, and construction machinery. Their main applications include:

1. Automotive Transmission Systems: In automotive transmission systems, splined shafts are applied in components like gearboxes and drive axles to transmit engine torque, driving the wheels to rotate.

2. Machine Tool Transmission Systems: In machine tool transmission systems, splined shafts are used in components like spindles and leadscrews to transmit torque produced by electric motors, driving cutters or workpieces for rotational or linear motion.

3. Transmission Machinery: In transmission machinery, splined shafts are used in components like reducers and pulleys to transmit torque generated by driving devices, powering the working machinery for rotational or linear movement.

4. Construction Machinery: In construction machinery, splined shafts are used in components like hydraulic pumps and engines to transmit power, driving the working devices of construction machinery to perform various tasks.

In summary, as a key component in mechanical transmission systems, splined shafts have multiple functions such as transmitting torque, enhancing transmission efficiency, reducing wear, and saving space. They have a wide range of applications in various types of machinery and equipment, which also impose high requirements on their materials and processing techniques. Therefore, a deep understanding of the functions and applications of splined shafts is of great significance for improving the transmission performance and reliability of machinery and equipment.
