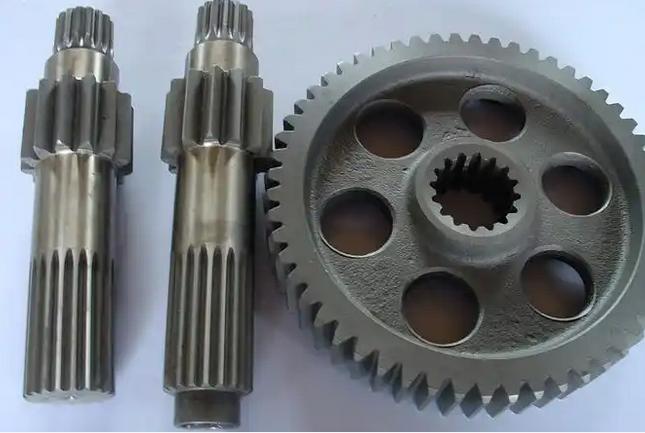

In mechanical design, splined shaft transmission has gained widespread application in the vehicle sector due to its unique advantages, while it is relatively rare in industrial machinery. The reasons behind this phenomenon are worth exploring in depth.
The widespread use of splined shafts in vehicles is first attributed to their high quality and space efficiency. The compact structure of splines allows for the transmission of high torque within a limited space, which is crucial for vehicles, especially passenger cars. Vehicle design requires the minimization of weight and volume while ensuring performance, a demand that splined shaft transmission meets perfectly. Moreover, the flexibility of spline shafts, which can connect a variety of objects, adds diversity to the vehicle transmission system.
Manufacturing cost is another factor that cannot be ignored. Although the processing cost of an individual spline is high, in the case of mass vehicle production, rapid and low-cost batch production can be achieved through specialized machines and custom tools. This gives splined shaft transmission a clear cost advantage in the vehicle sector.
However, the situation is different in the field of industrial machinery. Industrial machinery often requires higher strength, and in such cases, increasing the shaft size is usually a simpler and more economical solution. Additionally, industrial machinery has more relaxed spatial requirements, so other transmission methods, such as keyed shaft transmission, can also meet the needs.
In large equipment, such as propulsion equipment, multiple transmission methods like splines and non-standard clamps coexist. This is because these devices need to transfer immense torque, an area where splined shaft transmission has a clear advantage. But in smaller equipment, such as devices with power below 20kw, keyed shaft transmission is sufficient and less costly.
On the other hand, the robustness and reliability of keyed shaft transmission are also reasons for its widespread use in industrial machinery. The key is not a sacrificial component; if it fails, it could cause severe damage to the shaft and the connected equipment. Therefore, in many critical applications, such as the winch on a crane, keyed shaft transmission is preferred due to its high reliability.
In summary, the commonality of splined shaft transmission in vehicles and its rarity in industrial machinery are mainly determined by their respective application requirements, working environments, and cost considerations. The advantages of splined shaft transmission in the vehicle sector lie in its high quality, space efficiency, and manufacturing cost, while in the industrial machinery sector, other transmission methods like keyed shafts may be more suitable. This discrepancy exemplifies the diversity and flexibility of mechanical design and demonstrates engineers' ability to seek the best solutions in different scenarios.
