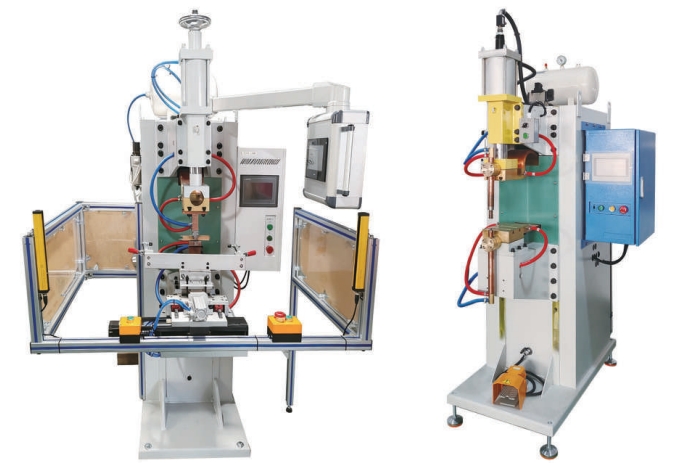

Vertical DC Spot Welding Machine

The vertical DC spot welding machine is a resistance spot welding equipment with a verticalstructure and using DC as the energy carrier.Its core function is the same as that of the desktopmachine(applying pressure to the electrode and passing a large DC current,and welding is achieved bythe contact resistance ofthe workpiece),but it takes vertical layout as the core,making it more suitablefor large/heavy workpieces or those that require vertical welding.It is widely used in industries such asautomobiles,hardware,and large home appliances.

Technical parameters

Parameter Category	Parameter Name	XCB-80	XCB-130	XCB-200	XCB-320	XCB-460	XCB-800
Basic Information	Current mode	Medium-frequency DC	Medium-frequency DC	Medium-frequency DC	Medium-frequency DC	Medium-frequency DC	Medium-frequency DC
	Model	XCB-80	XCB-130	XCB-200	XCB-320	XCB-460	XCB-800
Power Supply & Output	Input power supply	3φ380V±10% 50/60Hz	3φ380V±10% 50/60Hz	3φ380V±10% 50/60Hz	3φ380V±10% 50/60Hz	3φ380V±10% 50/60Hz	3φ380V±10% 50/60Hz
	Output current (max)	400A	600A	800A	1200A	1800A	3000A
	Matching transformer	90kVA	170kVA	220kVA	170×2kVA	220×2kVA	220×4kVA
Performance Parameters	Short-circuit current (max)	20kA	30kA	40kA	60kA	80kA	150kA
	Circuit breaker capacity	100A	160A	160A	200A	320A	400A
	Inverter frequency	1kHz	1kHz	1kHz	1kHz	1kHz	1kHz
Control & Communication	Communication method	RS485	RS485	RS485	RS485	RS485	RS485
	Welding Specification (max)	32 groups, expandable to 256 groups	32 groups, expandable to 256 groups	32 groups, expandable to 256 groups	32 groups, expandable to 256 groups	32 groups, expandable to 256 groups	32 groups, expandable to 256 groups
Working Environment	Working environment	Temperature: 0-45℃ (no freezing), humidity: ≤85% (no condensation); No strong magnetism, no severe vibration/shock; No corrosive gases or conductive dust
