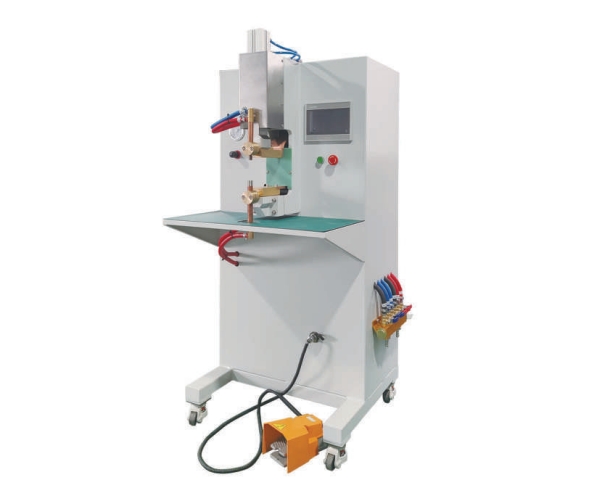

The benchtop DC spot welding machine is a resistance spot welding device that is fixed on theworktable and uses DC current as the energy carrier.Its core function is to apply pressure to theworkpiece through electrodes and pass a large DC current through it,and utilize the resistance heat atthe contact point of the workpiece to achieve local melting welding,ultimately forming a firm weldpoint.It is widely used in the field of precision manufacturing,especially suitable for scenarios with highrequirements for welding accuracy and heat-affected control.
| Parameter | XCB-Z-80 | XCB-Z-130 | XCB-Z-200 |
|---|---|---|---|
| Current mode | Medium-frequency direct current | Medium-frequency direct current | Medium-frequency direct current |
| Model | XCB-Z-80 | XCB-Z-130 | XCB-Z-200 |
| Input power supply | 3φ380V±10% 50/60Hz | 3φ380V±10% 50/60Hz | 3φ380V±10% 50/60Hz |
| Output current (max) | 400A | 600A | 800A |
| Matching transformer | 90kVA | 170kVA | 220kVA |
| Short-circuit current (max) | 20kA | 30kA | 40kA |
| Circuit breaker capacity | 100A | 125A | 160A |
| Inverter frequency | 1kHz | 1kHz | 1kHz |
| Communication method | RS485 | RS485 | RS485 |
| Welding Specification (max) | 32 groups, expandable to 256 groups | 32 groups, expandable to 256 groups | 32 groups, expandable to 256 groups |
| Working environment | Temperature: 0-45℃ (no freezing phenomenon), humidity: ≤85% (no dew phenomenon); No strong magnetism, no severe vibration or shock; No corrosive gases or conductive dustSame as leftSame as left | ||
