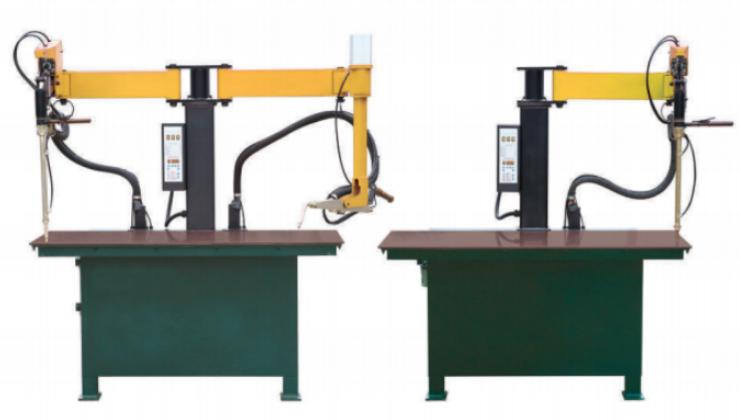

The platform spot welding machine is a resistance spot welding device with a fixed worktable as itscore.It appies pressure and electricity to the workpiece on the platform through electrodes,andachieves local melting welding by means of resistance heat.The design focuses on "platform carryingcapacity+stable operation",which is different from the vertical layout of vertical machines and theportability of handheld ones.It mainly emphasizes the flat placement of workpieces,batch/precisewelding,and is suitable for the processing of medium and small-sized regular workpieces.
| Current Mode | Model | Input Power Supply | Input Transformer | Output Current (Max) | Inverter Frequency | Circuit Breaker Capacity | Welding Arm | Platform Size (mm) | Welding Pressure (Max) | Electrode Stroke (Max) |
|---|---|---|---|---|---|---|---|---|---|---|
| Medium-frequency DC | XCB-P-80 | 3φ380V±10% 50/60Hz | 90kVA | 20kA | 1kHz | 100A | Single arm | 600×2000 | 6200N | 120mm |
| XCB-P-130 | 3φ380V±10% 50/60Hz | 150kVA | 30kA | 1kHz | 160A | Single/both arms | 600×2000 | 6200N | 120mm | |
| XCB-P-200 | 3φ380V±10% 50/60Hz | 200kVA | 40kA | 1kHz | 200A | Single/both arms | 600×2000 | 6200N | 120mm | |
| Power frequency AC | XCN-P-63 | 2φ380V±10% 50/60Hz | 63kVA | 13kA | 50Hz | 100A | Single arm | 600×2000 | 6200N | 120mm |
| XCN-P-100 | 2φ380V±10% 50/60Hz | 100kVA | 25kA | 50Hz | 200A | Single/both arms | 600×2000 | 6200N | 120mm | |
| XCN-P-150 | 2φ380V±10% 50/60Hz | 150kVA | 33kA | 50Hz | 200A | Single/both arms | 600×2000 | 6200N | 120mm | |
| Working Environment: | ||||||||||
| Temperature: -10°C to 45°C (no freezing/condensation); No strong magnetism, severe vibration, corrosive gases, or conductive dust. | ||||||||||
