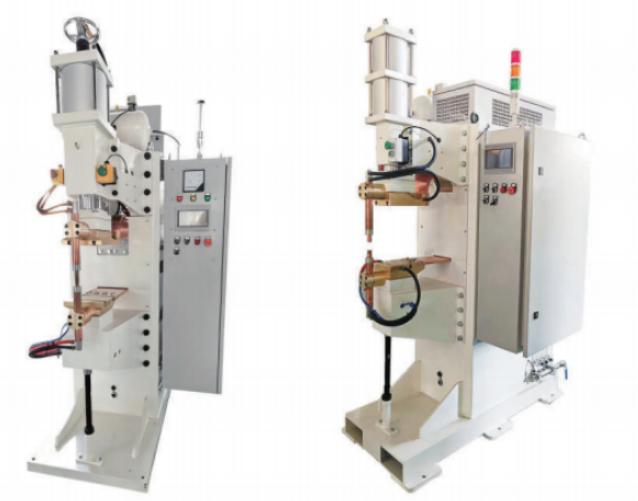

The energy storage spot welding machine is a resistance spot welding device based on capacitorenergy storage and discharge.Its core is to store electrica energy first and release it instantaneouslyduring welding.The metal is melted into a weld point by the contact resistance of the workpiece.Different from traditional continuous power supply welding machines,it features concentrated energyand minimal thermal impact,making it suitable for welding thin parts,precision partsand highlyconductive/thermally conductive metals.
| Parameter | XCR-1000 | XCR-5000 | XCR-10000 | XCR-20000 | XCR-30000 | XCR-40000 |
|---|---|---|---|---|---|---|
| Input Power Supply | 3φ380V±10% 50/60Hz | |||||
| Load Persistence Rate | 50% | |||||
| Short-circuit Current (Max) | 15kA | 35kA | 80kA | 130kA | 20kA | 32kA |
| Circuit Breaker Capacity | 32A | 32A | 63A | 100A | 125A | 200A |
| Welding Pressure (Max) | 2500N | 3900N | 8000N | 10000N | 15000N | 15000N |
| Electrode Stroke | 60mm | 80mm | 80mm | 80mm | 150mm | 150mm |
| Working Environment | ||||||
| Temperature: -10°C to 45°C (no freezing/condensation); Humidity: ≤85%; No strong magnetism, severe vibration, corrosive gases, or conductive dust. | ||||||
