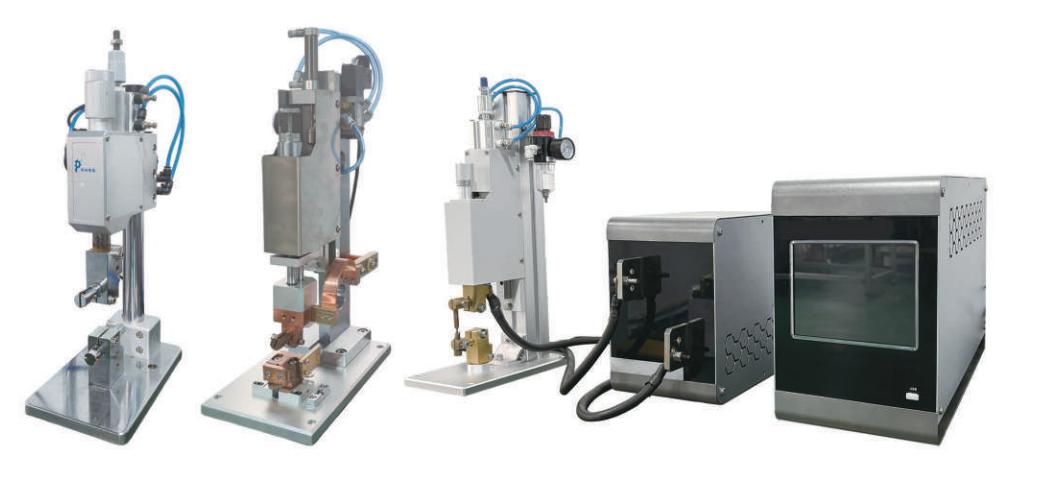

The power frequency of the precision spot welding machine is 1000HZ or 4000HZ,the controlaccuracy of the welding current is iA,and the control accuracy of the welding time is 0.001S.It can alsoimplement single-point welding,continuous welding automatic control,and manual control,with acomplete range of specifications.It is mainly used for welding various metal sheets,wires and bars suchas tungstenmolybdenum,iron-nickel,aluminum,stainless steel and silver.
| Parameter | XC-J-5000 | XC-J-10000 |
|---|---|---|
| Input Power Supply | 3φ380V±10%, 50/60Hz | |
| Inverter Frequency | 1–5kHz | |
| Secondary No-load Voltage | 9.8V | |
| Cooling Method | Forced air cooling | |
| Communication Method | RS485 (optional: Ethernet, etc.) | |
| Short-circuit Current (Max) | 5000A | 10000A |
| Setting Range of Electrical Parameters | 300–5000A | 300–10000A |
| Rated Power (5%) | 13.1kVA | 22.0kVA |
| Structural Features | Integrated side output | Power supply and transformer are separate |
| Welding Transformer | Built-in (air cooling) | External |
| Control Modes | ||
| Primary fixed current; Secondary fixed current; Optional: Secondary fixed voltage, secondary fixed power, constant conduction angle, current and voltage combination control mode | ||
