Essential Knowledge of Threaded Joints in Mechanical Design

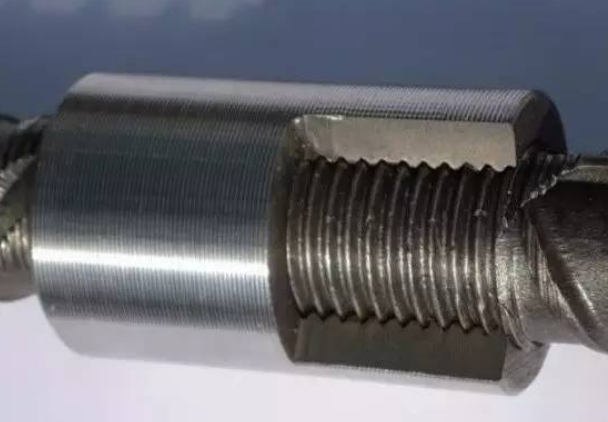

Today, let's discuss the knowledge about threaded connections that we must master in mechanical design! Threaded connections are rem)ovable connections that use threaded components (or the threaded portion of the connected components) to join the components into a single unit.

Threaded connections, as a common method of mechanical joining, are of paramount importance. In mechanical design, understanding the knowledge of threaded connections is crucial for ensuring the stability and reliability of mechanical structures. Here are some key points that we need to understand during the design process:

Firstly, threaded connections come in various types, including bolted connections, nut connections, and screw connections, among others. Each type has its specific application scenarios, advantages, and disadvantages. For example, bolted connections are suitable for situations where large loads are to be carried, while screw connections are more appropriate for small and precision equipment. Understanding different types of threaded connections helps us make reasonable choices during design.

Secondly, the selection of thread parameters is crucial. The main parameters of a thread include diameter, pitch, number of threads, and thread angle. These parameters directly affect the thread's load-bearing capacity, self-locking performance, and assembly precision. During design, we need to select thread parameters reasonably based on actual needs to ensure the reliability of the threaded connection.

Moreover, the preload force in a threaded connection is key to ensuring connection quality. Too much or too little preload force can affect the performance of the threaded connection. Excessive preload force can lead to thread damage, while insufficient preload force can result in loose connections. Therefore, in design, we need to determine the appropriate preload force through calculation and experimentation and apply the appropriate tightening method to achieve it.

Additionally, the anti-loosening measures for threaded connections cannot be overlooked. In harsh environments such as vibration and temperature changes, threaded connections are prone to loosening. To prevent loosening, we can adopt the following measures: use thread lubricants with anti-loosening properties, employ locking washers, or use a double-nut structure. These measures help to improve the stability of the threaded connection.

In terms of material selection, the material for threaded components should have good mechanical properties, wear resistance, and corrosion resistance. Common thread materials include carbon steel, stainless steel, and copper alloys. Choosing the appropriate thread material based on different working environments and requirements can increase the service life of the threaded connection.

Finally, the assembly process of threaded connections is also important. During assembly, attention should be paid to cleanliness, lubrication, and the sequence of tightening. The correct assembly process can ensure the quality of the threaded connection and reduce the failure rate.

In summary, threaded connections play a significant role in mechanical design. As mechanical engineers, we need to have a thorough understanding of the related knowledge of threaded connections, considering everything from thread types, parameter selection, preload force, anti-loosening measures, material selection, to assembly processes, to ensure the normal operation of mechanical equipment. Through in-depth research on threaded connections, we can continuously improve the level of mechanical design and contribute to the development of our country's mechanical industry.
