Choosing the appropriate material can improve reliability. Once considering the best substance for the device and its shaft, you should primarily think about the cost.

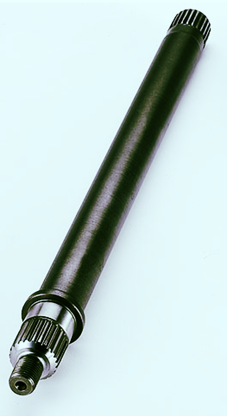

The material used for a typical motor shaft is mild steel, but once high strength is needed, alloy steel such as chromium-vanadium, nickel, and nickel-chromium is used.
Most motor constructors apply SAE 1045 in either hot-rolled (HRS) or cold-rolled steel (CRS). C1045 is a moderate carbon, moderate tensile steel provided as forged or normalized. This steel demonstrates appropriate toughness, strength, and wear resistance. Visit here to see the manufacturing process of them.
It is used for bolts, axles, crankshafts, forged connecting rods, light gears, torsion bars, guide rods, etc.
Other substances include sulfurized SAE 1137, SAE 1117, SAE 1144, cold-rolled SAE 1018, and hot-rolled SAE 1035. A ground stock of any substance is employed on particular CNC turning machines.
In general, the sulfurized and cold-rolled steels will increase prices relatively 15% more than HRS and will perform better. Machining trials are required to be implemented in order to control the extra cost. Because all shaft-turning devices perform differently, there is no established substance or machining maintenance.
On a cost-per-pound explanation, hot-rolled plain carbon steel is more cost-effective than cold-rolled sulfurized type. However, there are some drawbacks when we want to employ them. Hot-rolled material should be sized greater than cold-rolled form because of the lack of outer diameter (OD) monitoring in the rolling procedure.
Manufacturers of electric motors must evaluate whether the larger-size and lower-material-cost hot-rolled bar stock are more or less costly than cold-rolled bar stock.
Residual stresses, hard and soft spots, voids, and other substance deficiencies are typical with hot-rolled material, which makes it more problematic for machining. The issue with some high-strength steels is the hardest side is just the outside layers, so when the shaft is use, there is less strength.
Conducting trials will help you select the best substance between CRS, HRS, sulfurized, and non-sulfurized materials.
Industrial Electromechanical Repair Services (or IER Services) was presented in 2011 to supply effective, fast, repair services of electromechanical instruments of all kinds including DC and AC motors, variable frequency drives, pumps, dynamic balancing, and more. They also support shaft alignment services.
Not only do they provide their customers with quality motor shaft fixing, but they also provide special electric motor shafts used in other valves, pumps, motors, and hydraulics.
