Multiple spindle automatic lathe

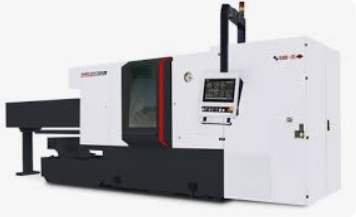

A multiple spindle automatic lathe, also known as a multispindle lathe or multispindle screw machine, is a type of lathe machine that is designed to simultaneously machine multiple parts in a single operation. It is commonly used in high-volume production environments where efficiency and productivity are crucial.

Here are some key features and characteristics of a multiple spindle automatic lathe:

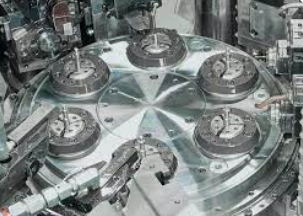

1、Multiple Spindles: Unlike a conventional lathe that typically has a single spindle, a multispindle lathe is equipped with multiple spindles, often arranged in a linear or circular pattern. Each spindle can hold a workpiece and perform machining operations independently.

2、Simultaneous Operations: The primary advantage of a multispindle lathe is its ability to perform multiple operations on different parts simultaneously. Each spindle can be set up to perform a specific operation, such as turning, drilling, tapping, milling, or threading. This significantly reduces cycle times and increases overall productivity.

3、Automatic Operation: Multispindle lathes are designed for automatic operation, minimizing the need for manual intervention. Once the machine is set up and programmed, it can run continuously, producing a large number of parts with minimal operator involvement.


4、High-Speed Machining: Multispindle lathes are capable of high-speed machining due to the simultaneous operation of multiple spindles. This allows for rapid production and shorter cycle times, making them well-suited for high-volume manufacturing.

5、Bar Feeding System: To feed workpieces into the lathe, multispindle machines often employ a bar feeding system. This system enables continuous production by automatically feeding long bars of raw material into the machine, cutting off individual workpieces as needed.

6、Tooling Configurations: Multispindle lathes feature multiple tooling stations, one for each spindle. These tooling stations can be customized to accommodate different cutting tools, enabling a wide range of machining operations to be performed.

7、Versatility and Flexibility: Multispindle lathes can be configured to suit specific production requirements. They offer flexibility in terms of workpiece sizes, shapes, and materials. The machines can be adapted for various industries, including automotive, aerospace, medical, and electronics, among others.

8、High Production Volumes: Multispindle lathes are optimized for high-volume production. By performing multiple operations simultaneously, they can achieve high throughput and meet the demands of large-scale manufacturing.



It's important to note that specific features and capabilities of multispindle lathes can vary depending on the manufacturer and model.
